8/d 4mm Aperture Color Process Plastics Industry Colorimeter NR110 Paint Marble Spectrophotometer
Brief Introduction
Since 1998, from imported instruments to domestic production, the 8/d 4mm Aperture Color Process Plastics Industry Colorimeter NR110 Paint Marble Spectrophotometer precision color difference meter is a landmark milestone in the color detection industry!
8/d 4mm Aperture Color Process Plastics Industry Colorimeter NR110 Paint Marble Spectrophotometer is a precision instrument developed and produced in accordance with the relevant standards of the CIE (International Lighting Commission) and national standards. The color difference meter adopts new imported key components and is carefully designed with the characteristics of accuracy and stability, simple operation, easy to learn and understand, and economical benefits.
Product Advantages
- Double Locating: Illuminating locating and precise cross locating.
- Switchable Double Measurement End Face: Large stable end face and small concave-convex end face.
- New Integrating Sphere Optical Path Design: Eliminating the stray light of main optical path and auxiliary optical path. Having the advantages of the highest measurement stability and precision.
- 4mm Measuring Aperture.
- Equipped with rechargeable high-capacity Li-ion battery. No need to purchase battery repeatedly.
- Configure CQCS3 software. Connect PC computer to realize more functions.
- Having got SCM Metrological Certification, CE Certification, and ISO9001 Quality Management System Certification.
- Hand-head structure: small and convenient; make the measurement easier.
- Exquisite appearance: adopts traditional and fashionable aesthetic designs.
- Spending huge sums on high-end mold. Product consistency approaches 100%.
- High cost performance: large output, good quality, cheap products
Applicable Industries
8/d 4mm Aperture Color Process Plastics Industry Colorimeter NR110 Paint Marble Spectrophotometer is widely used in coating, plastic, ink, textile, food, printing, packaging, paper, medicine, automobile, medical, metal, cosmetics, ceramics, paint, marble, aluminum, leather, hardware, wood products, building decoration materials, coating cloth, other non-metallic materials, plating, automotive interior parts, toys, printing and dyeing, pigments, chemicals, footwear, scientific research institutions, laboratories, etc.
Technical Specifications
| Illuminating/Viewing Geometry | 8/d |
| Measuring Aperture | Φ4mm |
| Detector | Silicon photoelectric diode |
| Locating | Illuminating Locating/Cross Locating |
| Measurement End Face | Large stable end face and small concave-convex end face |
| Color Space | CIE L*a*b*C*h* CIE L*a*b* CIE XYZ |
| Color Difference Formula | △E*ab △L*a*b* △E*C*h* |
| Light Source | D65 |
| Light Source Device | LED blue light excitation |
| Errors Between Each Equipment | ≤0.80ΔE*ab |
| Storage | 100pcs standards 20000pcs samples |
| Repeatability | Standard deviation within ΔE*ab 0.08 Average of 30 measurements of standard white plate |
| Language | English/Chinese |
| Weight | 450g |
| Dimension | 205×67×80 mm |
| Power source | Rechargeable lithium-ion battery 3.7V@3200mAh |
| Lamp Life | 5 years, more than 1.6 million measurements |
| Charging Time | 8 hours--100% electricity |
| PC Software | CQCS3 Software |
| Printer (optional) | Miniature thermal printer |
*Note: The specifications are subject to change without notice
Product Images
Suzie Xia
International Sales Dept.
--------------------------------------------------------------------------------
Shenzhen ThreeNH Technology Co., Ltd
Add: 4/F, Building 8, Nangang Second Industry Zone, Xili, Nanshan District, Shenzhen, 518055 China.
Tel: 0086-755-27198826 Ext: 601
Fax: 0086-755-27190609
Mobile: 0086-13510878132
Email: y@3nh.com
Skype: y@3nh.com
WhatsApp/Wechat: 86-15019429968
Website: www.3nh.com/en
|
|

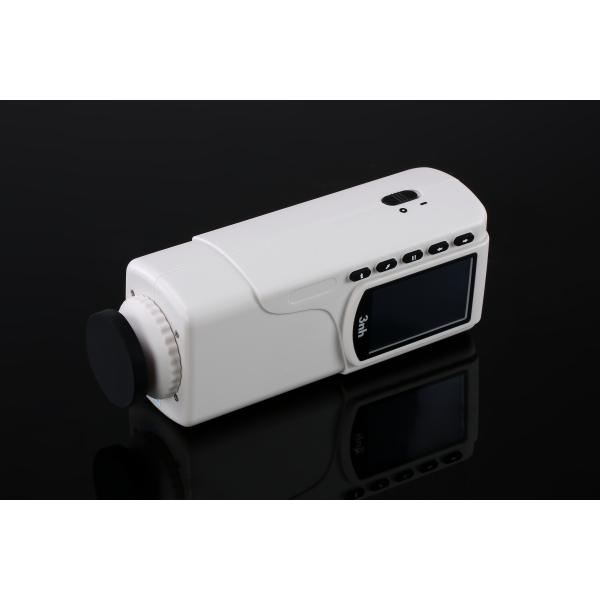

8/d 4mm Aperture Color Process Plastics Industry Colorimeter NR110 Paint Marble Spectrophotometer Images
|
